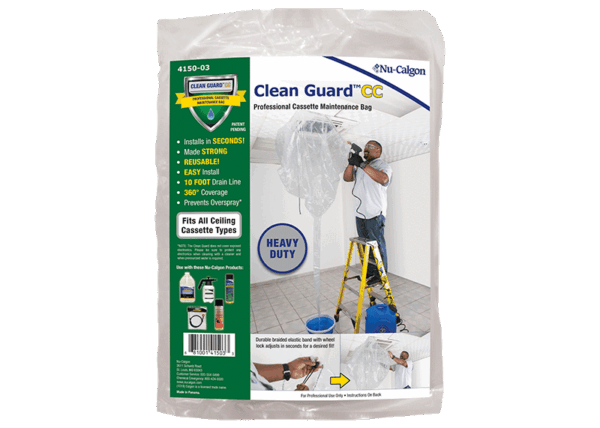

Clean Guard CC Cassette Maintenance Bag

Clean Guard CC Cassette Maintenance Bag

SKU: 4150-03

For use when cleaning indoor coils with Nu-Calgon cleaners

Easiest install on the market – installs in seconds!

Durable braided elastic band with wheel lock adjusts in seconds for a desired fit

4150-01 and 4150-02 now with hook-and-loop and antimicrobial

Heavy duty design

Eight-foot drain line for Clean Guard (XL). The Clean Guard CC uses a 10 foot drain line

Product Description

Clean Guard, Clean Guard XL and Clean Guard CC are reusable maintenance bags specifically for use by HVAC contractors to clean wall-mounted mini-splits and ceiling cassette systems with Nu-Calgon cleaners/disinfectants when the indoor coil and blower require service. Clean Guard installs in seconds with its use of an industrial grade elastic collar that simply and automatically adjusts around the indoor unit. There is nothing more simple and quick to use in the market!

The device provides 360-degree coverage to protect overspray on the walls, an integrated eight-foot drain line and heavy duty design to allow its reuse. For future use, Clean Guard simply needs to be rinsed, dried and stored in the five-gallon bucket used to collect the cleaning solution during service.

The Clean Guard and Clean Guard XL now include hook-an-loop buttons on the opening to make it easy to dry out the mini-split and bag after use. The Clean Guard and Clean Guard XL are now treated with antimicrobial chemistry in the plastic to resist deterioration by mold and fungus!

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

Ensure You Have Proper Supplies Before You Start. The Clean Guard
(4150-01) is sized for wall-mounted mini-split indoor coils up
to 12,000 BTUs (1 ton) in size. For wall-mounted mini-split indoor coils
between 18,000 and 36,000 BTU (1.5 to 3 tons) in size, it will
require the larger Clean Guard XL (4150-02). The Clean Guard will also
require the use of a readily available five-gallon bucket and the
use of a suitable Nu-Calgon cleaner.

Disconnect power from the unit.
Remove the return filters and protective cover off the mini-split indoor unit.
Simply snap the industrial elastic collar around the indoor
coil. Important: Make sure the adjustable collar fits well to create a
workable seal around the unit so as not to cause damage when
cleaning
the coil/blower followed by a power water wash if necessary.
IMPORTANT: The Clean Guard does not cover exposed electronics.
Please be sure to protect any electronics when cleaning with a
cleaner and if pressurized water is used.
Position the five-gallon bucket on a stable surface, typically the floor in
most cases, and position the Clean Guard funnel into the bucket.
During cleaning, wear protective gloves and eyewear.
Select a Nu-Calgon coil cleaner that is best suited for the job. For coils and
blowers that need to be cleaned and disinfected, Nu-Calgon’s Evap-Fresh
gallon (4166-08) with the use of a 50P Sprayer (4770-0) or Evap-Fresh No
Rinse aerosol (4166-75) with the use of the Talon Flexible Wand (4776-
0) are good options. For tough duty, Tri-Pow’r HD coil cleaner may be
necessary; but the use of Tri-Pow’r (at a 3:1 dilution) requires a water rinse.
NOTE: Some tough applications may still require a follow-up rinse with
pressurized water using a market available sprayer.
While cleaning, keep an eye on the five-gallon bucket to make sure
cleaner/water is draining into bucket properly; resolve any kinks in the
Clean Guard as necessary.
Recommission the mini-split system back to service.
Rinse, dry and store the Clean Guard inside the bucket for repeated use.
