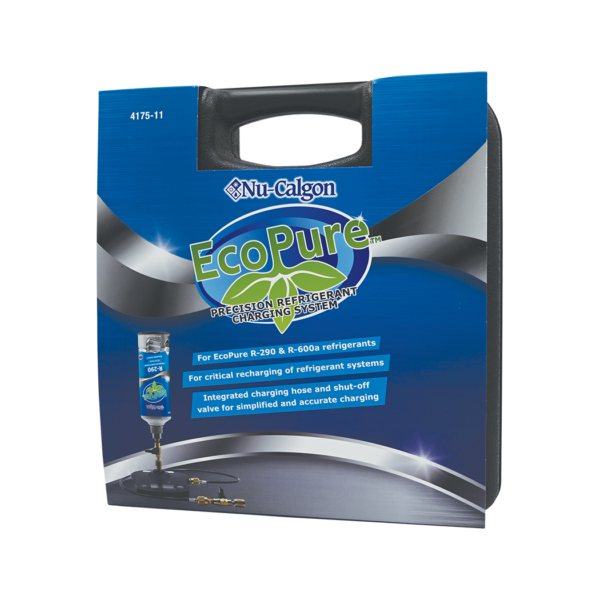

EcoPure Refrigerant Charging System
EcoPure Charging System provides integrated charging hose and shut-off valve with precision weigh scale for simplified and accurate charging
Canister adapter helps isolate the can for easy connection
Heavy duty refrigerant hose
Product Description
The EcoPure Charging System allows the ability to recharge the system with one gram accuracy! For contractors servicing small refrigeration systems who need a charging scale, the EcoPure Refrigerant Charging System has everything they need for precision dispensing and maximum flexibility at the job site.
Directions
FOR USE BY QUALIFED PROFESSIONALS ONLY.
ALWAYS USE IN ACCORDANCE WITH COMPLETE SERVICE INSTRUCTIONS DETAILED BY THE SPECIFIC EQUIPMENT MANUFACTURER.
1. Wear protective gear, use hydrocarbon gas monitor, and reaffirm no ignition sources.
2. Pull vacuum through suction service port, then isolate system to ensure it’s leak free.
3. Ensure hand valve is closed. Invert charge base and connect to upright EcoPure canister.
4. Crack hand valve to purge line while fastening to valve isolating the evacuated system. IMPORTANT: Always charge through the low side of system. Never expose EcoPure canister to high side pressure.
5. Invert cylinder/assembly on weigh scale for liquid refrigerant charging. Purge hose, tare scale, slowly charge to OEM specification. If necessary, briefly cycle system to fully charge. Do NOT overcharge.
6. Close assembly hand valve after charging. In a ventilated area, turn the canister upright, quickly remove from charging base and follow manufacture guidelines to seal the process tube.
Product Information
| Item Packaging Size | Case Quantity | Description |
|---|---|---|
| Each | 1.0 |
Video
Product Documents
Documents
Product Bulletin
