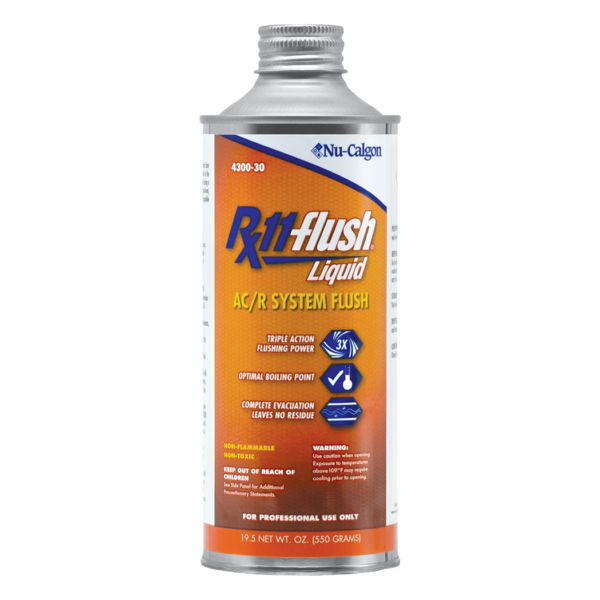

Rx11-flush Liquid

SKU: 4300-30

The industry standard for flushing refrigeration and air conditioning systems

Ideal for system clean-up after burnouts

Cleaning is fast and efficient leaving no residue

Flush line sets for R-410A or A2L conversions

A2L Ready

Product Description

Rx11-flush Liquid is a high-performance solvent specifically engineered to remove contaminants from AC/R systems. Just like the aerosol Rx11-flush, this liquid version is powerful enough to flush away sludge, carbon deposits, old oil, acids, moisture, and other contaminants dissolved in the oil layer that remains in line sets. With the convenience of a liquid, you can add as much or as little to the charging tank to blast away contaminants in the system. Because it has an optimal boiling point, is non-flammable and the strongest flush on the market, it is the only trusted option for full-system cleanouts after compressor burnouts or for effectively restoring old line sets.

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

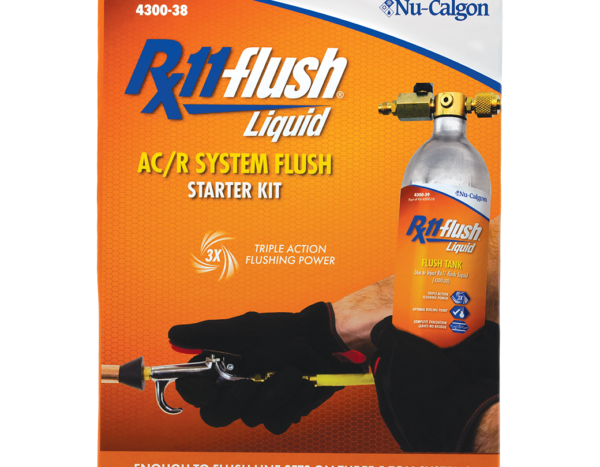

Use Flush Tank and accessory tools in Rx11-flush Kit (4300-38) for the following procedures.

Establish one end of the line set as the exit point and crimp or restrict it in order to increase mass flow and contact time.
Place a re-sealable recovery container at the exit point to capture the used flush/oil mixture.
Attach Flush Hose with Flush Gun to the outlet side of the Flush Tank valve (opposite the ball valve).
Unscrew top and pour Rx11-flush Liquid into the Flush Tank (Tank will hold up to 24 ounces of Rx11-flush Liquid). Reassemble components, then attach the hose from a pressure regulated nitrogen tank to the inlet side (ball valve side) of the Flush Tank.
Set the pressure regulator to deliver 50 psi of nitrogen. Then, slowly open the inlet ball valve to pressurize Flush Tank. DO NOT EXCEED 200 PSI. After pressurizing the injector tank, close both valves and remove the nitrogen fill hose. Never flush with nitrogen attached to Flush Tank.
Insert Flush Gun in entry port of line and inject flush. One can of Rx11-flush Liquid will typically clean 3 line sets. Results will vary according to contamination level and tubing diameter.
After injecting the Rx11-flush Liquid, proceed to purge the lines with 120 psi nitrogen, capturing the solvent/oil residue in the recovery container. Clear flush solvent indicates the lines are clean. If the exiting solvent is not yet clear, repeat flush procedure.
Pull vacuum to remove any residual solvent. Line set is now clean and ready to service.
